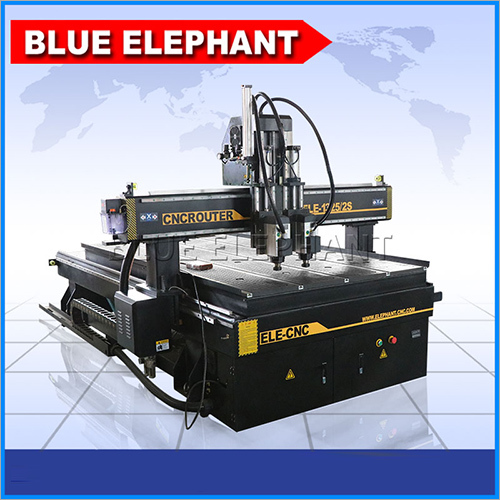

Pneumatic System 2 Spindles CNC Wood Router

Pneumatic System 2 Spindles CNC Wood Router
Pneumatic System 2 Spindles CNC Wood Router
Product Code : ELE1325/2s
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 8000 - 11000 USD ($)
Product Specifications
  • Type
  • CNC Router
  • Warranty
  • 1 year apart from man made fault
Product Description

Since our inception year, we have been engaged in manufacturing and supplying high performing Pneumatic System 2 Spindles CNC Router. Widely used for making slots, the offered router is demanded in various industries. This is manufactured in compliance with set international standards using high grade materials under the observation of our team. Our clients can avail this Pneumatic System 2 Spindles CNC Router from us at market-competitive rates within promised time frame.

Features:

  • Easy to operate
  • High operational fluency
  • Long service life
  • 4.5kw HSD air cooling spindle from Italy
  • 5.5kw DELTA inverter from Taiwan
  • Original Mach3 control system.
  • Japan YASKAWA servo motor.
  • vacuum pump
  • 380V, 3ph,50Hz

Parameters:

  • X,Y,Z Working Area: 1300x2500x400mm
  • X,Y,Z Traveling Positioning Accuracy: Â±0.03/300mm
  • X,Y,Z Repositioning Accuracy: Â±0.03mm
  • Table Surface: Vacuum and T-slot working table
  • Frame: Welded Structure
  • X, Y Structure: Rack and Pinion Drive, Hiwin Rail Linear Bearings
  • Z Structure: Hiwin Rail Linear Bearings and Ball Screw
  • Max. Power Consumption: (Without Spindle) 3.2Kw
  • Max. Rapid Travel Rate: 33000mm/min
  • Max. Working Speed: 25000mm/min
  • Spindle Power: 4.5kw Italy HSD air cooling spindle
  • Spindle Speed: 0-18000RPM
  • Drive Motors: Japan YASKAWA servo motor
  • Command Language: G Code
  • Operating System: Mach3 4axis control System
  • Computer Interface: USB
  • Rotary device: 300mm diameter*2200mm length
  • Collet: ER25
  • X,Y Resolution: <0.01mm
  • Software Compatibility: Type3/UcancameV9 Software, (Option: Artcam Software)
Trade Information
  • FOB Port
  • Qingdao or according to your requirement
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Delivery Time
  • 25 Days
  • Packaging Details
  • stretchy film package and wire rope fixed
  • Certifications
  • CE BV TUV SGS ISO
