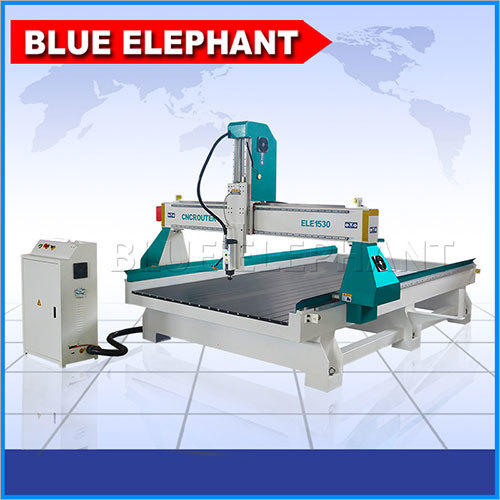

New type High Z axis Wood carving cnc machine 1530

New type High Z axis Wood carving cnc machine 1530
New type High Z axis Wood carving cnc machine 1530
Product Code : ELE1530
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 6999 - 8000 USD ($)
Product Specifications
  • General Use
  • cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,et
  • Type
  • CNC Router
  • Weight (kg)
  • 1000 Kilograms (kg)
  • Automatic
  • Yes
  • Power Source
  • Electric
  • Voltage
  • 380V 50Hz
  • Motor
  • AC Motor
  • Table Size
  • 1500*3000*500mm
  • Spindle Speed
  • 24000 RPM
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Vacuum Cleaning System
  • Warranty
  • 1 year apart from man made fault
Product Description

To convince and fulfill the diverse requirements of our prestigious clients, we are engrossed in offering an excellent quality CNC Router Machine. It is manufactured using top grade materials and advanced technology under the guidance of our team. It is the art of cutting or carving grooves or characters into a surface. This is done with a rotating tool or cutter in a motorized spindle. The process is similar to routing and is used to produce cuts of specified widths and depths in a wide variety of materials. To fulfill the changing requirements of our customers, we offer this CNC Router Machine at market leading prices.

Features:

  • Easy to operate
  • Provides non-interrupted performance for long time
  • Strong construction

Parameters:

Description

Parameter

X,Y,Z Working Area

1500*3000*500mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

Table Surface

T-slot Working Table with PVC protection

Frame

New type thicker and bigger heavy duty welded frame and gantry

X, Y Structure

Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Rail 20#

Z Structure

Taiwan TBI Ball Screw, Taiwan Hiwin/PMI Rail Linear Rail 20#

Spindle Power

3KW Italy HSD air cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

FL118 stepper motor and Yako 2811 big driver

Inverter

3.7kw Fuling Inverter

Lubrication system

Manual lubrication system

Working Voltage

AC220V, 1Ph, 60Hz (Option: 380V)

Operating System

DSP A11 Control System

Control box

Single-sided indenpended control box

Dust collector

1.5kw double pockets dust collector (AC220V, 1Ph, 60Hz)

Optional

Japan Omron limit switch

ARTCAM 2012 software

high flexible towline, fire-proof double-sheathed cable

PS:All the working area and specifications can be customized according to your requests.

Trade Information
  • FOB Port
  • Qingdao or according to your requirement
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 500 Per Month
  • Delivery Time
  • 25 Days
  • Sample Available
  • Yes
  • Packaging Details
  • Standard export plywood case package
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE ISO BV SGS
