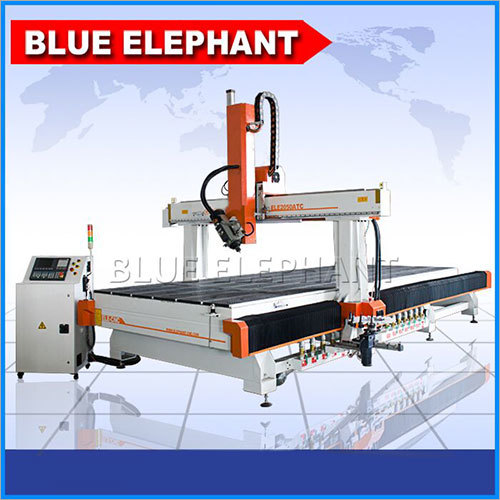

High Z travel 4 Axis Atc CNC Wood Carving Machine

High Z travel 4 Axis Atc CNC Wood Carving Machine
High Z travel 4 Axis Atc CNC Wood Carving Machine
Product Code : ELE2050ATC
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 16800 - 25000 USD ($)
Product Specifications
  • General Use
  • Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
  • Type
  • CNC Router
  • Weight (kg)
  • 1100 Kilograms (kg)
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Voltage
  • 380V 50Hz
  • Motor
  • AC Motor
  • Table Size
  • 2000*5000*600mm
  • Spindle Speed
  • 24000 RPM
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Vacuum Cleaning System
  • Warranty
  • 1 year apart from man made fault
Product Description

Founded in the year 2003, our entity is a leading manufacturer and exporter of optimum quality ATC 4 Axis Woodworking Machine. It is widely used in various drilling and allied applications. The tool is best for reaming, spotting, tapping, boring and counter boring.  This can be used in the production of various items, such as door carvings, interior and exterior decorations, moldings, musical instruments, furniture, wood panels, sign boards, wooden frames, and so on. Available in various technical specifications, clients can avail this ATC 4 Axis Woodworking Machine from us at reasonable prices.

Features:

  • Easy to operate
  • Long service life
  • Hassle free performance
  • Air cooling spindle 9 KW Italy HSD atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.
  • Taiwan SYNTEC 4 axis control system-Easy operation. Support offline operation,more table.
  • 850w Japan YASKAWA servo motor-High-performance drive motor to ensure that the machines high speed and accuracy.
  • HIWIN linear rail 25# from Taiwan-Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
  • Vacuum & T-slot combined worktable-Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
  • Helical rack transmission-Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
  • Carrousel Tool Magazine- With 12 ISO30 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
  • Y axis is with dustproof, Protect the machine cleaner and easy to clean up.

Parameters:

  • Working Size:  2000*5000*600mm(Can be customized)
  • Traveling Positioning Accuracy:  Â±0.03/300mm
  • Repositioning Accuracy:  ±0.03mm
  • Spindle Power:  9KW Italy HSD ATC air cooling spindle
  • Spindle Speed:  24000RPM
  • X, Y axis:  Helical rack, Hiwin 25# Rail Linear Bearing
  • Z axis:  Hiwin Rail 25# Linear Bearing & TBI Ball Screw
  • Max. Rapid Travel Rate:  40000mm/min
  • Max. Working Speed:  25000mm/min
  • Servo motor:  850w YASKAWA
  • Control System:  Taiwan SYNTEC 4 axis control system
  • Table surface:  T-slot & vacuum Table
  • Frame:  Welded Structure
  • Servo driver:  850w YASKAWA
  • Collet:  ISO30
  • X,Y Resolution:  <0.01mm
  • Software Compatibility:  Type3/UcancameV9/Artcam Software
  • Running Environment Temperature:  0 ÃƒÂ¢Ã¢â€šÂ¬Ã¢â‚¬Å“ 45 Centigrade
  • Relative Humidity:  30% ÃƒÂ¢Ã¢â€šÂ¬Ã¢â‚¬Å“ 75%
  • Optional parts:7.5kw Tongyou vacuum pump, 1.5kw new type dust colleator, Reducer(Japan shimpo or Germany Eisele)
Trade Information
  • FOB Port
  • Qingdao or according to your requirement
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 500 Per Month
  • Delivery Time
  • 25 Days
  • Packaging Details
  • Standard export plywood case package
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE ISO BV SGS
