Home » Products » ATC CNC Router » German Siemens control ATC CNC Wood Router Machine

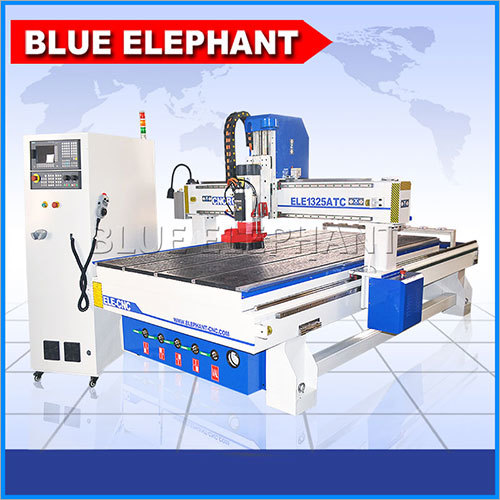

German Siemens control ATC CNC Wood Router Machine

German Siemens control ATC CNC Wood Router Machine
German Siemens control ATC CNC Wood Router Machine
Product Code : ELE1325ATC
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 16000 - 21000 USD ($)
Product Specifications
  • General Use
  • Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
  • Type
  • CNC Router
  • Weight (kg)
  • 1000 Kilograms (kg)
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Voltage
  • 380V 50Hz
  • Motor
  • AC Motor
  • Table Size
  • 1300*2500*200mm
  • Spindle Speed
  • 18000 RPM
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Vacuum Cleaning System
  • Warranty
  • 1 year apart from man made fault
Product Description

We are having prominent and reliable name in the market indulged in manufacturing and exporting 4 Axis Atc Wood Carving Machine. This is used for boring, drilling, counter-sinking, reaming, milling, and other types of finishing in individual and small-scale production. It is a tool that creates objects from wood. Further, this 4 Axis Atc Wood Carving Machine can be availed from us at industry-leading prices.

Features:

  • Provide noise free-operation
  • Consume less power
  • Provides non-interrupted performance for long time
  • German SIEMENS controller and servo,with high precision and best quality.
  • Oil mist cooling,Help to improve the effect of metal processing.
  • The working voltage can be in 400V, 380v or 220V, European technology standards.
  • Italy HSD automatic tool changing spindle,the max pwer can be in 9KW.



Parameters

Description Parameters
Model ELE1325ATC
Working size 1300*2500*200mm
Color Customized
Working Voltage 380V, 3Phase, 50Hz
Control system Germany SIEMENS 808D Control System
Spindle 9kw HSD ATC air cooling spindle
Inverter 11kw Delta Inverter
Motor & Driver SIEMENS Servo Motor & Driver
Traveling speed 45m/min
Working speed 25m/min
Auto tool changer magazine Linear
Tool slots 8
Table surface T-slot and vacuum working table with 4 zone
Lubrication system Automatic lubrication system
Gantry structure Gantry moving
Structure New type thicker and bigger heavy duty welded frame and gantry
Transmission X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail Taiwan HIWIN Linear square guide #25
Vacuum pump 5.5kw air type vacuum pump (380V, 3Phase, 50Hz)
Dust collector 1.5kw new type double packet dust collector (380V, 3Phase, 50Hz)
Tool sensor Automatic tool sensor calibration



PS:All the working area and specifications can be customized according to your requests.

Trade Information
  • FOB Port
  • Qingdao or according to your requirement
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 500 Per Month
  • Delivery Time
  • 25 Days
  • Packaging Details
  • Standard export plywood case package
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE ISO BV SGS
