Home » Products » 3 Axis CNC Router » CNC engraving machine 1325 with dust collector

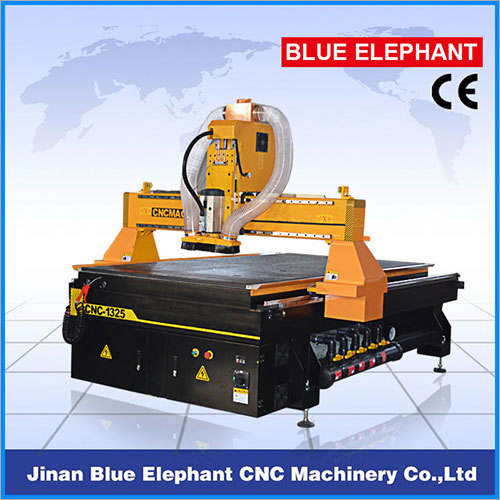

CNC engraving machine 1325 with dust collector

CNC engraving machine 1325 with dust collector
CNC engraving machine 1325 with dust collector
Product Code : ELE1325
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 6000 - 8000
Product Specifications
  • General Use
  • cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,et
  • Type
  • CNC Router
  • Weight (kg)
  • 1000 Kilograms (kg)
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Power Source
  • Electric
  • Voltage
  • 380V 50Hz
  • Motor
  • AC Motor
  • Table Size
  • 1300*2500*200mm
  • Spindle Speed
  • 24000 RPM
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Vacuum Cleaning System
  • Warranty
  • 1 year apart from man made fault
Product Description

We are recognized as the trustworthy organization of this domain engrossed in offering wide array of CNC Wood Router Machine. It is precisely manufactured using the optimum grade materials under the guidance of our team. This creates objects from wood. The CNC Wood Router Machine we supply is widely demanded by the customers because of their accurate construction, smooth and hassle free performance, impact resistance, efficiency and long working life.

Features:

  • Energy efficient
  • Low maintenance
  • Unmatched performance
  • X,Y,Z Working Area:1300x2500x200mm
  • X,Y,Z Traveling Positioning Accuracy: ±0.03/300mm
  • Table Surface:Vacuum & T-slot Table
  • Frame:Welded Structure,heavy duty T-structure
  • X, Y Structure:Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
  • Z Structure:Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
  • Max. Power Consumption:2.0KW
  • Max. Rapid Travel Rate:45000mm/min
  • Max. Working Speed:30000mm/min
  • Spindle Power: China HQD air cooling spindle or 3KW Italy Imported HSD air cooling spindle(optional)
  • Spindle Speed:0-24000RPM
  • Drive Motors:Delta servo motor (optional)
  • Working Voltage:AC380V/50/60Hz,3PH (Option: 220V)
  • Operating System:DSP (Options: Ncstudio /Mach3 Software)
Trade Information
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 500 Per Month
  • Delivery Time
  • 25 Days
  • Packaging Details
  • Standard export plywood case package
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE ISO BV SGS
