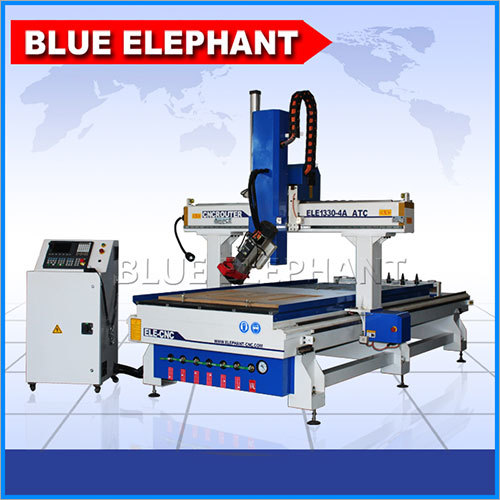

ATC cnc 3D wood carving cutting machine

ATC cnc 3D wood carving cutting machine
ATC cnc 3D wood carving cutting machine
Product Code : ELE1330-4A ATC
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 15000 - 24000 USD ($)
Product Specifications
  • General Use
  • Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
  • Type
  • CNC Router
  • Weight (kg)
  • 1000 Kilograms (kg)
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Power Source
  • Electric
  • Voltage
  • 380V 50hz
  • Motor
  • AC Motor
  • Table Size
  • 1300*3000*400mm
  • Spindle Speed
  • 18000 RPM
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Vacuum Cleaning System
  • Warranty
  • 1 year apart from man made fault
Product Description

Founded in the year 2003, our entity is a leading manufacturer and exporter of optimum quality ATC CNC Wood Router Machine. It is used in shaping and finishing wood and other materials. This is ideal for hobbies, product development, art, engineering prototyping, and production work. This is manufactured using high grade metal materials and pioneering technology under the supervision of our team. Available in various technical specifications, clients can avail this ATC CNC Wood Router Machine from us at reasonable prices.

Features:

  • Easy to operate
  • Long service life
  •  Hassle free performance

Parameters:

  • X,Y,Z Working Area: 1300x3000x400mm
  • Table Size: 1300*3000mm
  • X,Y,Z Traveling Positioning Accuracy: Ã‚±0.03/300mm
  • X,Y,Z Repositioning Accuracy: Ã‚±0.03mm
  • Table Surface: Vacuum and T-slot working table
  • Frame: Welded Structure
  • X, Y Structure: Rack and Pinion Drive, Hiwin Rail Linear Bearings
  • Z Structure: Hiwin Rail Linear Bearings and TBI Ball Screw
  • Max. Power Consumption: (Without Spindle) 3.2Kw
  • Max. Rapid Travel Rate: 33000mm/min
  • Max. Working Speed: 25000mm/min
  • Spindle Power: 9kw Italy HSD ATC air cooling spindle
  • Spindle Speed: 0-24000RPM
  • Drive Motors: 850W Japan YASKAWA servo motor
  • Working Voltage: 380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)
  • Command Language: G Code
  • Operating System: Taiwan SYNTEC 4 axis control System
  • Computer Interface: USB
  • Optional: Japan shimpo reducer,Becker vacuum pump,dust collector
  • Collet: ISO30
  • X,Y Resolution: <0.01mm
  • Software Compatibility: Type3/UcancameV9 Software, (Option: Artcam Software)
Trade Information
  • FOB Port
  • Qingdao or according to your requirement
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 500 Per Month
  • Delivery Time
  • 25 Days
  • Packaging Details
  • Standard export plywood case package
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE ISO BV SGS
