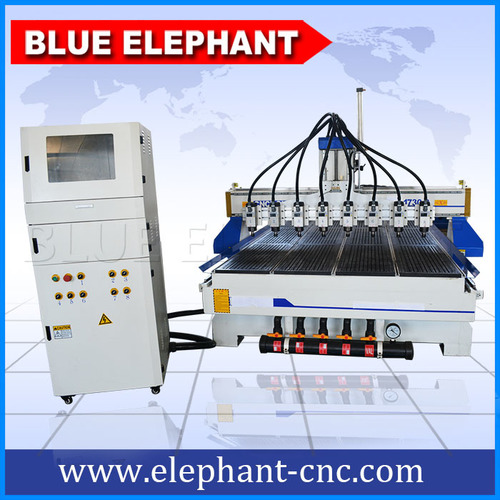

8 Spindles CNC woodworking machines 1730

8 Spindles CNC woodworking machines 1730
8 Spindles CNC woodworking machines 1730
Product Code : ELE1730-8
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 16500 - 21000 USD ($)
Product Specifications
  • Type
  • CNC Router
  • Warranty
  • 1 year apart from man made fault
Product Description

With the help of our team of technical experts, we are engaged in offering outstanding quality Multi Spindles Woodworking CNC Machine. The offered machine is manufactured using supreme grade materials with the help of advanced technology. It helps in the thermoforming of plastics by automating the trimming process. We test this machine prior to dispatch from our end to ensure its excellent performance. Clients can avail this Multi Spindles Woodworking CNC Machine from us at nominal prices.

Features:

  • Low power consumption
  • Negligible maintenance
  • Longer service life
  • 8 spindles
  • Japan YASKAWA servo
  • Taiwan HIWIN Linear guide
  • Imported high precision ball screw transmission
  • 8 HQD 2.2KW air cooling spindles,with the same precision and effect
  • Italy HSD or China water cooling spindle for option
  • smooth working speed,generating 8 copies at the same time
  • Big Steel Beam with 8mm thickness steel

Parameters:

  • X Working area:  1700mm
  • Y working area:  3000mm
  • Z working area:  300mm
  • structure:  Big Steel Beam with 8mm thickness steel
  • worktable:  T-slot & vacuum table
  • spindles:  2.2kw air cooling spindle * 8 spindles
  • inverter:  2.2kw Delta inverter import from Taiwan
  • Control system:  NC studio 53C control system
  • Linear rail:  30# HIWIN Linear Guide way made in Taiwan
  • transmission:  TBI ball screw from Taiwan
  • motor:  Japan YASKAWA servo servo
  • driver:  Japan YASKAWA servo driver
  • switch:  Japanese OMRON Switch
  • cable:  Highly flexible towline-only Cable Imported fire-resistant double-sheathed
  • voltage:  3PH 380V 50HZ
  • package:  plywood case
Trade Information
  • FOB Port
  • Qingdao or according to your requirement
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Delivery Time
  • 35 Days
  • Packaging Details
  • stretchy film package and wire rope fixed
  • Certifications
  • CE BV TUV ISO SGS
