Home » Products » 4 Axis CNC Router » 4 Axis CNC Router machine With Rotary device

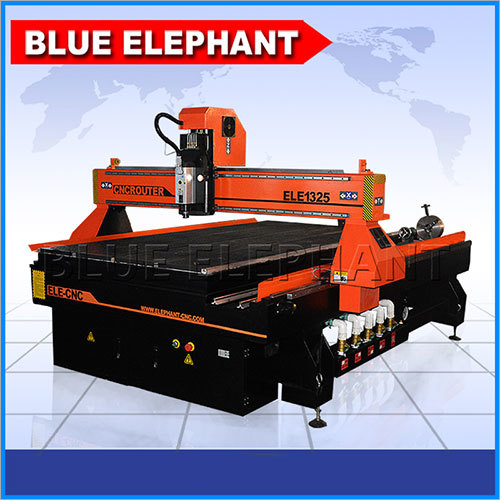

4 Axis CNC Router machine With Rotary device

4 Axis CNC Router machine With Rotary device
4 Axis CNC Router machine With Rotary device
Product Code : ELE1325
Price And Quantity
  • Minimum Order Quantity
  • 1 set
  • Price Range
  • 6000 - 8000 USD ($)
Product Specifications
  • General Use
  • cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,et
  • Type
  • CNC Router
  • Weight (kg)
  • 1000 Kilograms (kg)
  • Computerized
  • No
  • Automatic
  • Yes
  • Power Source
  • Electric
  • Voltage
  • 380V 50Hz
  • Motor
  • AC Motor
  • Table Size
  • 1300*2500*400mm
  • Spindle Speed
  • 24000 RPM
  • Feature
  • Low Energy Consumption, High Speed, High Precision, Vacuum Cleaning System
  • Warranty
  • 1 year apart from man made fault
Product Description

With the full understanding and support of our technical experts, we are engaged in providing outstanding quality 4 Axis CNC Router With Rotary. This is manufactured using premium grade materials and ultra modern technology under the stern guidance of our team. It is used for cutting various hard materials, such as wood, composites, aluminium, steel, plastics, and foams. Our respected clients can avail this 4 Axis CNC Router With Rotary from us at nominal prices.

Features:

  • Provide noise-free operations
  • Enhanced service life
  • Excellent performance
  • DSP A18 4 axis control ststem
  • Well suitable for processing stone ,wood
  • The diameter of rotary axis is 300mm
  • The sink table of rotary device is made of stainless steel
  • Z axis is 400mm, Processing different materials

Parameters

Description

Parameter

X,Y,Z Working Area

1300x2500x400mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

T-slot Table

Frame

Welded Structure

X, Y Structure

#20 HINWIN linear guide,helical rack

Z Structure

Hiwin Rail Linear guide and Ball Screw

Max. Power Consumption

(Without Spindle)  2.5kw~3Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

5.5 KW

Spindle Speed

0-24000RPM

Drive Motors

YASKAWA

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

Command Language

G Code

Operating System

DSP A18 4 axis control system

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS: All the working area and specifications can be customized according to your requests.

Trade Information
  • FOB Port
  • Qingdao or according to your requirement
  • Payment Terms
  • Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Paypal
  • Supply Ability
  • 500 Per Month
  • Delivery Time
  • 25 Days
  • Sample Available
  • Yes
  • Packaging Details
  • Standard export plywood case package
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • CE ISO BV SGS
